A $1500 Tax Credit is available on the 100, 150 and 200 models.See tables below.
Go Green With The Econoburn™...Best built wood boiler in the industry.
The Econoburn™ wood boiler is built to rigorous ISO 9001-2000 standards for unbeatable quality, reliability, ease of use and fuel efficiency.
Fifty years of metal fabricating experience, and state of the art manufacturing technology, insures a superior wood fired boiler.
Designed and made in the U.S.A. Your Econoburn™ wood boiler easily installs to your existing commercial or residential heating system. Providing the utmost in convenience, fuel efficiency and savings.
If you have special requirements, the Econoburn™ wood boiler can be custom engineered and installed to your specifications.
How The Econoburn™ Achieves 90% Efficiency
In a typical wood burning boiler a large amount of combustible gas is released after the initial burning of the wood fuel. This gas accounts for nearly 50% of the energy in the wood. Due to inefficient combustion, a conventional wood boiler fails to caput this wasted energy.In a typical wood burning boiler this waste is lost up the flue causes creosote and excess air pollution. Econoburn™ wood boilers utilize a combustion technology called 'Gasification' to capture, extract and transfer this energy that standard wood boilers simply waste. WATCH THE GASIFICATION VIDEO
The Econoburn Gasification Process Explained
As the wood is burned in the firebox, fresh air is blown downwards through the logs and coals. As this hot smoke and air mixture is forced into the combustion chamber, it is mixed with a second jet of super-heated air. This results in a torch like combustion of the retained gases. Extreme temperatures exceeding 1800 degrees burn these gases with little residual soot or creosote, and the extra energy extracted is transferred to the Econoburn's™ full jacket heat exchanger.
This extraordinary process allows Econoburn™ boilers to achieve overall thermal efficiencies of nearly 90%! What this means for everyone using the Econoburn™ is more heat from less wood, significant fuel bill savings, and minimal environmental impact.

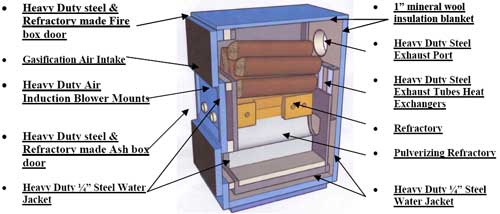

Econoburn™ Wood Burning Boiler Main Features
- 1/4" Steel plate Construction
Econoburn™ wood boilers are constructed of 1/4 inch ASME grade A36 carbon steel plate throughout Seams are double welded in all critical areas for strength, durability and excellent temperature and corrosion resistance. - Low emissions
High temperature Gasification process creates a clean burning environmentally friendly wood burning boiler with minimal creosote or ash. WATCH THE GASIFICATION VIDEO - Full Water Jacket Heat Exchanger
The Econoburn™ utilizes a Full Water Jacket Heat Exchanger allowing maximum heat transfer and utilization. - Custom Made Refractory
High technology custom made gasification firing chamber efficiently retains its heat. When the fire burns down the refractory maintains it's temperature, then with the introduction of forced air re-ignites fresh wood. - Easy Clean Ash Chamber
A front accessible ash chamber makes maintenance a breeze. - Heavy Duty Draft Induction
An industrial grade fan forces air into the gasification chamber producing ultra high efficiency combustion and heat transfer. - Draft Combustion Control Unit
Industrial grade touch pad control units are used to optimize the wood boiler's combustion process.
Econoburn™ Wood Boiler Model Specifications
| Econoburn™ Boiler Model | EBW-100 | EBW-150 | EBW-200 | EBW-300 | EBWC-500 | EBWC-1000 |
|---|---|---|---|---|---|---|
| Tax Credit Available | up to $1500 | up to $1500 | up to $1500 | |||
| Btu's per Hour (Max) | 100,000 | 150,000 | 200,000 | 300,000 | 500,000 | 1,000,000 |
| Water Capacity (Gal) | 28 | 33 | 44 | 80 | 118 | 132 |
| Firebox Volume (Cu Ft) | 5.44 | 6.19 | 8.05 | 11.94 | 22.06 | 32.95 |
| Log Length (Max) | 21" | 21" | 21" | 23" | 33" | 46" |
| Door Opening | 12" X 15" | 12" X 15.75" | 12" X 20.5" | 12" X 23.5" | 13" X 32" | 13" X 32" |
| Height | 62.5" | 66" | 66.5" | 72.25" | 72.6" | 76" |
| Width | 25.5" | 26.8" | 31.5" | 37.4" | 42.1" | 42.1" |
| Depth | 44" | 44" | 44" | 47" | 65.9" | 79.2" |
| Flue Size | 8" | 8" | 8" | 8" | 12" | 12" |
| Weight (Pounds) | 1440 | 1550 | 1860 | 2395 | 3220 | 4360 |
Not sure which model is best for your situation? Call Greg at Sunburst Sales LLC, 1-920-745-2199 for a professional recommendation. Get the Econoburn Specifications.
Thermal Storage Tank Option
Thermal storage tanks maximize the heating benefits of your Econoburn™ or other name brand boiler. Thermal storage tanks allow storage of excess energy from the boiler that is not immediately needed to heat your home. This reserve thermal energy may then be used later to heat your home.
These highly efficient tanks are well insulated and virtually maintenance free. Sizes range from 500 to 1500 gallons. Contact Greg to match a storage tank to your new or existing system.
Econoburn Retail Prices
All Econoburn™ Boilers are built in an ISO 9001-2000 facility to exact standards, with ASME certified welders. EPA Phase 1 approved units ranging from 100,000 btu up to 1,000,000. Download the manual.
All Prices Include: pump, pressure relief valve, pressure & temperature gauge, digital aquastat & well, high temp silicone, turbulator shaker handle, exhaust door handle, bottom target refractory and owner’s manual.
| Econoburn™ Boiler Model | EBW-100 | EBW-150 | EBW-200 | EBW-300 | EBWC-500 | EBWC-1000 |
|---|---|---|---|---|---|---|
| Tax Credit Available | up to $1500 | up to $1500 | up to $1500 | |||
| Btu's per Hour (Max) | 100,000 | 150,000 | 200,000 | 300,000 | 500,000 | 1,000,000 |
| Retail Price | $6,995 | $7,995 | $8,995 | $9,995 | $13,995 | 19,995 |
| NOTE: The prices above are retail prices only. There are special package prices and frequent promotional discounts available. Call Greg at 920-745-2199 for your best overall package pricing. All prices are subject to change without notice. |
||||||
ASME Certified Econoburn Boiler Pricing
These boilers are ASME inspected and certified. Units are red in color and require a 6 week lead time. Download the manual.
| Econoburn™ Boiler Model | EBWC-100 | EBWC-150 | EBWC-200 |
|---|---|---|---|
| Tax Credit Available | up to $1500 | up to $1500 | up to $1500 |
| Btu's per Hour (Max) | 100,000 | 150,000 | 200,000 |
| Retail Price | $7,995 | $8,995 | $9,995 |
| NOTE: The prices above are retail prices only. There are special package prices and frequent promotional discounts available. Call Greg at 920-745-2199 for your best overall package pricing. All prices are subject to change without notice. |
|||
Warranty
An Econoburn™ high-efficiency wood-fired boiler is an important investment in your home. That’s why we build our boilers to last a lifetime. In fact, we are so confident in our boiler that we provide a comprehensive 25-year warranty to protect your peace of mind. The warranty covers the pressure vessel for 25 years against defects in material and workmanship and all other boiler parts for a period of 5 years! Simply operate your boiler in accordance with the Installation and Operating Manual and you are covered. We even offer a simple transfer process should you sell your home.
