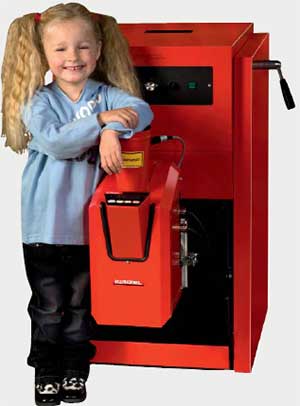

Aqua-Therm Pellet-One Boiler
The new Aqua-Therm Pellet-One boiler Manufactured in Germany by KÜNZEL heating systems was designed form the ground up for easy installation, operation and reliability.
The Pellet-One is a fully automatic pellet heating system capable of burning 6mm to 8mm (1/4" to 5/16") pellets of verying quality; and with a minimum overall efficiency of 87% your heating dollars are not wasted up the flue. The Pellet One may be used as your main heating system or be combined with an existing system. In either case the Pellet One provides years of economical heating comfort.
Pellet One Key Features
- Low emissions and environmentally friendly.
- Uses wood pellets a renewable green fuel source.
- Easy to clean and service.
- Removable front-mounted burner unit.
- Heat-exchanger cleaning lever & handy ash drawer.
- Easily combined with other heating systems (oil/gas/solar…)
- High overall efficiency of > 87% ensures economical fuel use.
- Available in 24,000 - 44,000Btu/Hr and 51,000-79000 Btu/Hr models.
- Optional pellet auger systems are available.
Technical information
| PK 10 | PK 20 | |
|---|---|---|
| Rated capacity (Btu/Hr) | 24,000-44,000 | 51,000-79,000 |
| Efficiency (LHV) | 87.2% | 94.7% |
| Max pellet burn rate (Lb/Hr) | 7 | 12 |
| Dimensions | 21"W x 36"H x 40"D | 25"W x 48"H x 45"D |
| Flue gas exhaust (In) | 4.3 | 5.1 |
| Water volume (Gal) | 13 | 26 |
| Weight (Lb) | 350 | 602 |
| Electrical | 80 W, 120 V, 60 Hz | 80 W, 120 V, 60 Hz |
| Pellet-One Brochure | PelletOne.pdf 2.2Mb | |
