Nature's Comfort GT & NCB Series Wood Burning Boilers

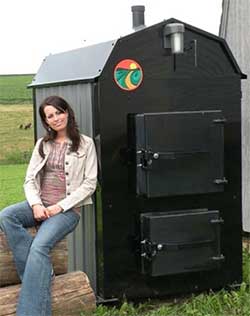

GT-500 & GT-220 Down Draft Boilers
The GT-500 & GT-220 are three stage down draft wood burning boilers utilizing high temperature gasification and a honeycomb catalyst filter in the burn process.
New! Add the SM-H60 solar heating system to most Nature's Comfort Boilers and boost the efficiency to as much as 100% !!
What this means to you:
- Little or no smoke – clean air!
- High efficiency wood burning – Uses less wood to heat your home.
- Less ash and less cleaning.
- Less time spent loading wood.
- Environmentally friendly
How the GT-220 & GT-500 Work
Stage one burn occurs in the main fire box. The gasses from this stage are forced down into the second stage double secondary burn chamber, where the gasification process occurs at temperatures near 2000°F. The exhaust gasses from the gasification process then pass through the stage three ceramic catalyst filter, which burns any remaining particulates.
Throughout the three stage combustion process heat is efficiently transferred into the water jacket, then transferred to your home, shop or other buildings, providing economical environmentally friendly comfort all winter long.
The GT-220 outdoor wood boiler is now available in a non-sheltered model at a significantly reduced price. Call Greg for availability and pricing.
The GT-220 is one of the most efficient low emission outdoor wood burning boilers on the market today! Just remember always burn well seasoned dry wood for highest efficiency - Greg
GT-220 Informational Video
Nature's Comfort GT-220 & GT-500 Specifications
| Model | GT-220 | GT-500 |
|---|---|---|
| BTU's | 300,000 BTU | 500,000 BTU |
| SQR Foot Heating | Heats up to 8,000 sqr ft * | Heats up to 12,000 sqr ft * |
| Efficiency | 84% (dry seasoned wood) | 84% (dry seasoned wood) |
| Fire Box Door | 20”x 20” | 20”x 20” |
| Fire Box Dimensions | 30”H x 28”W x 40”L | 30”H x 28”W x 58”L |
| Fire Box Cubic ft | 17.4 | 25.2 |
| Fire Box Thickness | 1/4" Steel | 1/4" Steel |
| Water Jacket Thickness | 3/16" Steel (7ga) | 3/16" Steel (7ga) |
| Water Jacket Capacity | 220 gal | 300 gal |
| Weight | 2380 lbs | 2800lbs |
| Unit Size | 83"H x 45"W x 78"L | 83"H x 45"W x 96"L |
| Warranty | Twenty Year Limited | Twenty Year Limited |
| Retail Price | Sale! $6100 - limited quantities available Call now! 920-420-3399. |
$9,480 |
| Insulation - Fiberglass R-19 w/ Foil Foam, Double Insulated All The Way Around | ||
| GT-220 Wood burning down draft boiler manual | ||
| GT-220 brochure | ||
*Will heat up to (x)sq ft (This must include all heated areas of home as well as basement.) with proper installation, properly insulated building and when properly seasoned hardwood is used (20% moisture content). Deduct a minimum of 500 sq ft if heating domestic hot water.
Nature's Comfort NCB Series Outdoor Wood Boilers
NCB Series Key Features
- Fire Box 3/8 or 1/4" thick steal fire box
- Industry Leading 3/16 to 1/4" inch water jacket
- Easy to read float, Visible from 100 feet
- Large fuel door
- Pull out ash pan, no need for shoveling
- Includes valve, pump, and flange
- Motion sensor flood light included
- Draft blower with solenoid shutoff
- Powder coat finish
- Burns wood or coal
New! Add the SM-H60 solar heating system to most Nature's Comfort Boilers and boost the efficiency to as much as 100% !!
Nature's Comfort NCB-325G Outdoor Wood Boiler
NCB-325G Key Features
|
 |
NCB-325G Combustion chamber |
All NCB Series Outdoor Boilers
| Model | NCB 120 | NCB 175 | NCB 250 | NCB 325G | NCB 575 |
|---|---|---|---|---|---|
| BTU | 130,000 | 185,000 | 275,000 | 350,000 | 700,000 |
| SQR Foot Heating | 3,000 sq-ft* | 4,000 sq-ft* | 6,000 sq-ft* | 10,000 sq-ft* | 20,000 sq-ft* |
| Weight | 1,652 | 1,817 | 2,260 | 2,400 | 6,100 |
| Dimensions | 42 x 63 x 86 | 46 1/2 x 60 x 90 | 46 1/2 x 78 x 90 | 49 1/2 x 85 x 92 | 88 3/8 x 104 1/2" x 111 3/8 |
| Firebox Opening | 21.75"W x 22"H | 25.75"W x 17.75"H | 25.75"W x 17.75"H | 27"W x 25.5"H | 52"W x 30"H |
| Firebox Dim. | Oval 25.5"W x 31"H x 36"D | Cylinder 29.25"W x 36"D | Cylinder 29.25"W x 54"D | Oval 30"W x 36"H x 54"D | Cylinder 60"W x 60"D |
| Firebox Thickness | 1/4" | 3/8" or 1/4"** | 3/8" or 1/4"** | 1/4" | 3/8" |
| Firebox Cubic ft | 15 | 13.5 | 20.5 | 28.5 | 89 |
| Ash Pan Dim. | 39" X 11.75" X 4" | 39" X 11.75" X 4" | 39" X 11.75" X 4" | 39" X 11.75" X 4" | 68" X 34.375" X 8" |
| Water Jacket Thickness | 10ga. (1/8") | 7ga. (3/16") | 7ga. (3/16") | 7ga. (3/16") | 1/4" |
| Water Jacket Capacity | 120 | 175 | 250 | 325 | 600 |
| Retail Price | $5,280 | $5,780 | $6,780 | $8,480 | $17,980 |
| NCB 120 Manual | NCB 175 Manual | NCB 250 Manual | NCB 325 Manual | Photo of the 575 compared to the 175 (bottom of page) |
*Will heat up to (x)sq ft (This must include all heated areas of home as well as basement.) with proper installation, properly insulated building and when properly seasoned hardwood is used (20% moisture content). Deduct a minimum of 500 sq ft if heating domestic hot water.
**Firebox thickness depends on option ordered by customer
SunMor SM-H60 Solar Heater
The SunMor SM-H60 from Nature’s Comfort works in tandem with most boilers up to 175 gallons and 2 solar water heaters in parallel can heat up to 350 gallons. Add more solar heaters to heat more gallons! Reduces burn times in winter increasing efficiency and provides free domestic hot water in summer without burning fuel!
See the SM-H60 Brochure for more information.
For the Best Price on a new GT or NCB wood boiler/furnace, in Wisconsin or for more information Contact Greg at
