Slant/Fin Victory VSPH

Built For Performance & Reliability

Slant Fin Lp Or Gas Boiler

Sealed combustion, 60 -180 MBH input, 86% efficient, PVC venting, Energy Star rated

Advanced design cast-iron heat exchanger extends boiler life

The cast-iron boiler sections are produced on state-of-the-art computerized machining centers to extremely critical tolerances. Superior heat transfer properties permit use of smaller, more compact heat exchanger sections. The flue passage design, thermal pin pattern and consistent wall thickness ensure uniform heat transfer with less thermal strain and metal fatigue.

Speedy, self-sealing vent connection

Flue connector has an integral seal that is compatible with Saf-T Vent EZ Seal® vent components. Integral seals speed vent installation. With EZ Seal components, no RTV sealant and no curing time are required, so the boiler may be started immediately. EZ Seal vent components won’t seat incorrectly, so you reduce the risk of accidental flue gas or condensate leakage. For use of other vent component brands, see installation instructions. Air intake utilizes PVC or galvanized pipe.

Increased efficiency with insulated base assembly

The Victory VSPH base assembly is constructed of heavy gauge aluminized steel. Thick refractory insulation surrounds the combustion chamber, increasing efficiency. One piece stainless steel burners with special



Slant Fin Boiler

Hold mouse over image for larger picture.



Avoid leaks with durable metal push nipples

Only metal push nipples are used to join the cast iron sections. These push nipples expand and contract uniformly with the cast-iron sections for superior, leak-free performance and longer life. In many ordinary boilers, cheaper rubber or plastic gaskets are substituted for metal push nipples and could deteriorate and leak.

Integrated boiler control optimizes boiler performance

The electronic control was designed specifically to optimize the operation of the Victory VSPH boiler. It monitors the status of boiler components and controls the sequence of operation, including pre and post-purge periods, trial for ignition and lockout. Five indicator lights verify normal operation and provide diagnostic information when flashing.

Unitized air intake-vent terminal

Designed specifically for use with the Victory VSPH boiler, the combination air intake-vent terminal is versatile and attractive. It fits walls from 31⁄2" to 12" thick. Included with every boiler.

*Saf-T Vent EZ Seal is a registered trademark of Heat-fab, Inc


Animated Flame For More Information Email  greg@sunburst-sales.com Animated Flame

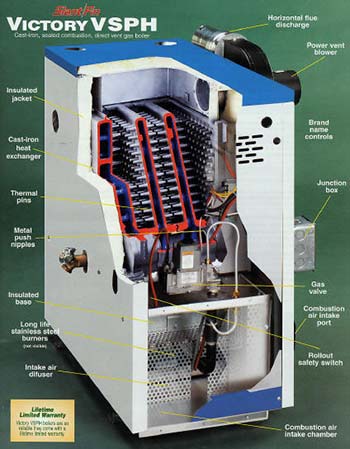

Slant Fin Boiler Diagram
